Parts on this page are specifically for Styled L's with the Hercules engine- Many more parts are available than are shown here. I have Hercules Hood, and other sheet metal, as well as wheels shown elsewhere


Original underhood air cleaner, it is NOT rusted out, very good condition, $160


Original underhood air cleaner, it is NOT rusted out, very good condition, $160

Air cleaner hose (not useable), but does have two original and useable wire clamps, $10

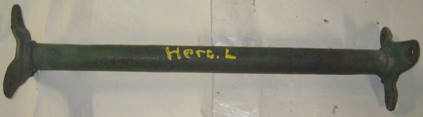

Throttle rod for a Hercules L, similar to above, $50

Connecting rod from throttle rod to governor, $50

Throttle plate for Hercules L, $10

This throttle plate has a good spring, $15

The nicest upper water pipe, $45

Hercules L upper water pipe, good condition, $40

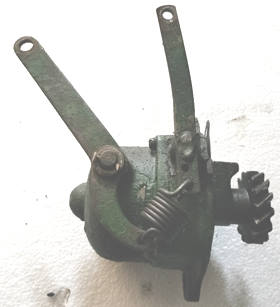

Handy governor for Hercules NXB, $150

Carburetor to governor linking rod, some modification, but it works, $12

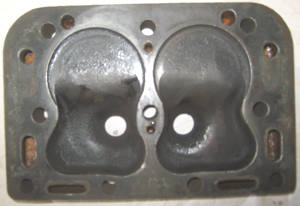

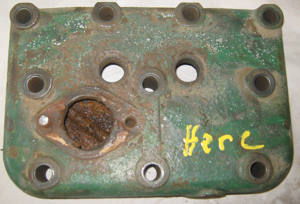

Hercules L head, $75

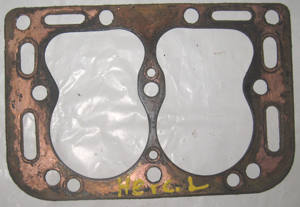

Head gasket, used, $8

Hercules NXB manifold with added pipe. Either remove the pipe for original look or add a muffler to the end of the pipe. $85

This engine came from a tractor that was running the day we parted it. Looks to be a low hour engine with little wear. The engine did not smoke. It is still standard bore, and there are no breaks or repairs noted in the block or anywhere else. It includes the entire clutch housing assembly, as shown. This engine is an easy fix to get your Hercules L back to original if you have a bad block or yours has been converted with an LUC engine. $1200. I prefer that you pick it up here, but it can be shipped truck freight if you make the freight arrangements. Total weight is 300 lb.

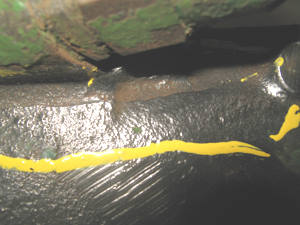

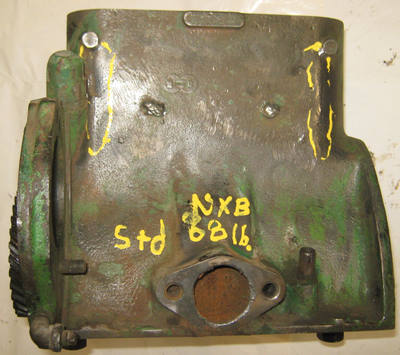

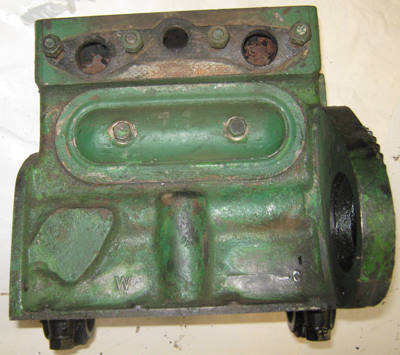

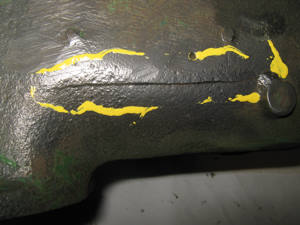

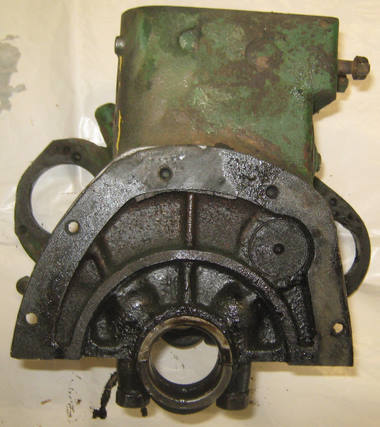

Above three photos of an NXB block bored .040 over . Oil pressure regulator not included. Only problem appears to be a freeze crack as outlined in white in the photos. The machine shop said this will be repairable. $40

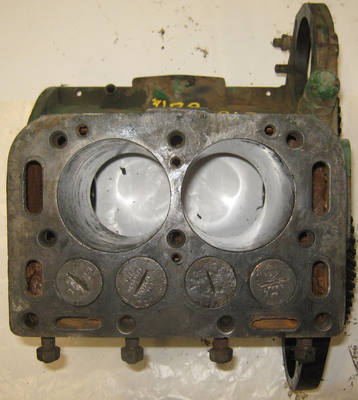

This NXB block is bored .020 with good bores and the matching .020 pistons available. There are two repaired spot on the outer jacket, shown circled in blue. One valve seat is pitted, the others pretty good. $60

3 1/4 plus .020 over pistons for all JD L, $35 each, 3 available

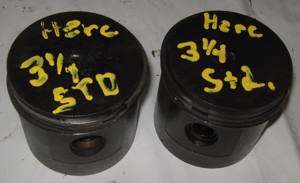

ALSO: Standard pistons, $25 each, Connecting rods, $25 each

Hercules NXB crankshaft, $50
Good used main bearings available from this crankshaft, $20

Flywheel, $25

Pilot bushing for flywheel, $9

Two views of an L4118T crankshaft pulley for JD L engines, $80. Note that even though this pulley is for a later L, it did come from a Hercules L engine and will fit correctly.

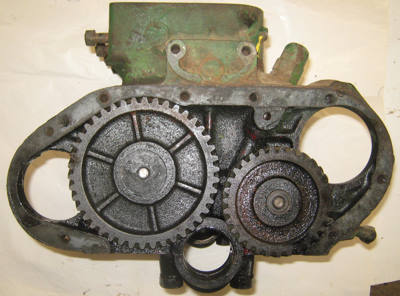

Camshaft and cam gear for NXB, $35

Cam followers for Hercules NXB are $20 for the set of four. Valves, springs, and keepers $40 for the entire set, also sold individually

Valve cover, $8

Oil pump, Hercules NXB, tested, works good, $40

Oil pump screen, very good condition, $20

Hercules NXB oil pipes, $10

Lower water pipe, similar to above, $10


Set of head bolts, $12


Oil pan for Hercules NXB, casting #62084D, $45

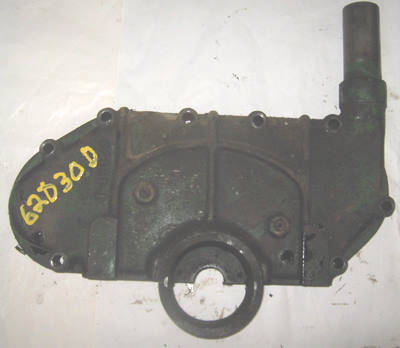

Front engine cover for Hercules NXB, $45, your choice


Spark plug wire holder for Hercules NXB, $12.50


Front engine mounting bracket for Hercules engine, no breaks or repairs, $30

Fan assembly for Hercules L with good bearing, $90

Correct original fan with pulley for a Hercules L, bearing has some play, but still usable, $60

This is the nicest Hecules L fan that I have had, very good bearing, almost like new, $120


Fan bracket for Hercules NXB, $15

Flywheel housing, $20

Flywheels available, $25

Correct and original radiator for Hercules L, There are no noted core leaks, but several tubes have past repairs. No noted leaks at bottom tank. Upper pipe has some leaks where it is soldered to the tank and upper tank also has one repairable leak. This radiator can be repaired and used, but is sold as-is and is priced accordingly at $150, can ship UPS

This is the nicest Hercules L driveshaft cover that I have ever had, nearly flawless. $325

Above is the micest base and shield, from a Hercules L. The crank guide has been broken. There are no cuts, rust, or past repairs, and the tin will need only minor straightening, $500
I have two other base and shields shown on the sheetmetal page.

Hercules L gas tank #1, sound condition, some cleaning needed, $60

Hercules L gas tank #2, sound condition, some cleaning needed, $60

Hercules L hood #3, very good condition, easily the best of the bunch, needs a litle straightening at the very front, $175

Hercules L hood #2, very good condition, $150

Hercules L hood #1, some repairs and some rusty spots, areas shown circled in blue, $60

Grille #4, the nicest of this group, $300
More grilles are shown on the sheet metal page.

Most components available for top shift type transmission that was used prior to serial # 628999. Email for prices on individual parts.

Clutch fork and shaft for Hercules L- $25


Clutch housing with shaft, no throwout bearing, $60 (45 lb)


Throwout bearing, $40

AL20293T, Rear bearing retainer, $10

AL2240T, Shaft in clutch housing, $35

Engine house rear support, $15

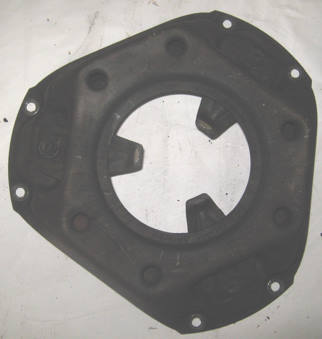

8 1/2" pressure plate for Hercules L, $35



8 1/2" pressure plate for Hercules L, $40

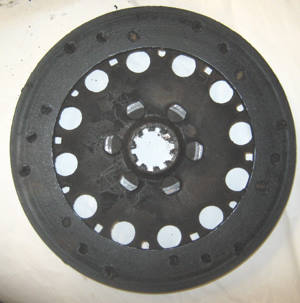

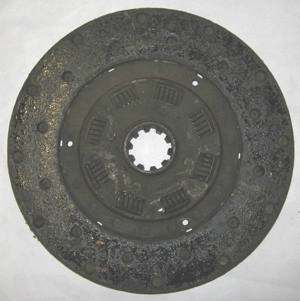

Clutch disk, 8 1/2", $25

Clutch disk, 9", $35

Complete top shift transmission in good condition, good gears, shafts, and bearings, $200, can ship UPS, several available

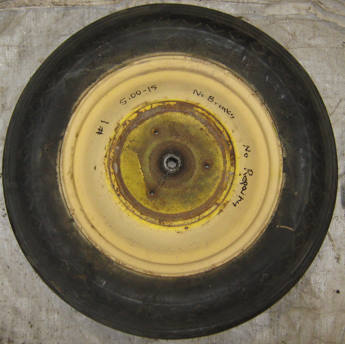

Correct front wheel for Hercules L without the holes for wheel weights, $40 each


Clutch pedal for Hercules L, $20
Clutch rod, $15

Hercules L seat bracket #1, good spring, $60

Two views of an good seat bracket #7, good spring, for Hercules L, $60

Very nice and original drawbar for a Hercules L, $120

Serial tag #626380, still on a very nice frame, $425. I can remove the tag from the frame if that is all you need.



Hercules L frame in very nice condition, no serial tag, $50 - must pick up here or arrange for truck freight. Crating charge will apply for truck freight.

Good, hot Edison Splitdorf magneto, came from a running tractor, $200
