VINTAGETRACTORS.COM
AND
RUSTY ACRES RANCH
L and LA Front Ends
and Parts
L and LA Steering Parts
Also available:
Complete Fixed Front End Asemblies
Complete Adjustable Front End Assemblies
All front ends can be shipped UPS. Crating charge is $10.
Individual Front End
Parts

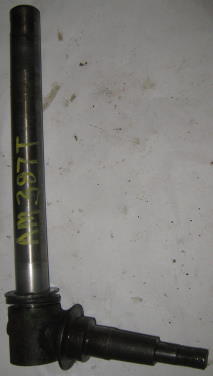

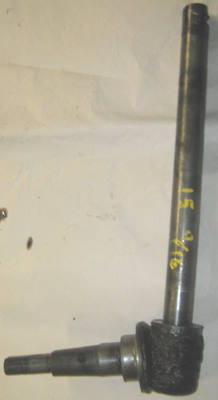

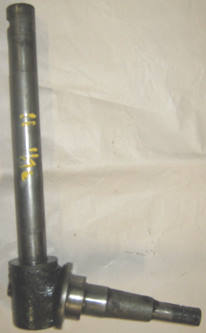

15 1/2" long overall, 1 1/8" diameter spindle,
good condition, straight with good ends, your choice $50 each
15 1/2" long overall, 1 1/8" diameter spindle,
slight wear at area by the top of the kneee, $30
15 1/2" long overall, 1 1/8" diameter spindle,
slightly bent $30
15 1/2" long overall, 1 3/8" diameter spindle,
$30
Shorter spindle for L front ends, 1 1/8" diameter,
12 1/2" long overall height, $30
Left hand steering arm for 1 1/8" spindle, casting
is split as shown, but still very ueasble, as-is, $15
Left hand steering arm for 1 1/8" spindle, casting
is split as shown plus has a brazed repair, but still very ueasble,
as-is, $15

Right hand steering arm for 1 1/8" spindle, $15
Right hand steering arm, fits 1 3/8" spindle,
bolt not included, $15
Tie rod for adj. front, welded together, $10
Tie rod for fixed front, $20

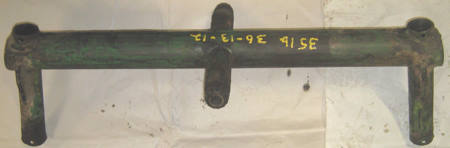

Cemter section for fixed front end, $25
Center section for adjustable axle, $15

Knee for adjustable axle, $25
Two knees similar to above, good condition, but not
as nice as the $25 ones. $10 each
U bolt and nuts for adjustable axle clamp, $5
Clamp for adjustable axle, $5
Bearings ($6) and race ($4) for front pivot (Bearing
is also the same as outer front wheel bearing), Tabbed washer
for front wheel, $4
Complete set of bolts, nuts, shims, and retaining plates
for front pivot. $20
Nice spindle dust seals, $9 each
AL657T, spindle bushing for 1 1/8" spindles, $10
each
Also have bushings for the 1 3/8" spindles
AL2079T Dust shield for drag link, $20
Very straight fixed front drag link, $45, your choice
Fixed front drag link, complete, $45
This fixed front drag link (#2) is $40
Drag link for fixed front: Has weleded bracing, good
ends, $25
Straight drag link for adjustable front with good ends
and all internal parts, $35

Steering arm for adjustable front, has been repaired, similar
to above, $10

Steering arm for adjustable front, no breaks or repairs, similar
to above, $20
Steering arm for fixed front, has been repaired, similar
to above, $10
Steering arm for fixed front, no breaks or repairs,
similar to above, $30
Complete Fixed Front End Asemblies


Fixed front #3
Fixed front #1

Fixed front #2

Fixed front #6
Fixed front #9

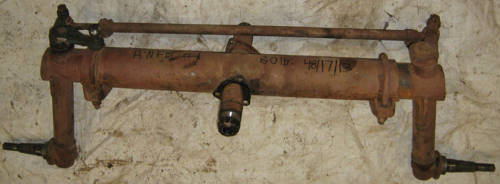

L/LA fixed front ends, all are in good or better condition--
#3 is from an LA and has the longer 15 1/2 inch spindles, Overall
in very good condition with good steering arms, has added bracing
underneath, $110

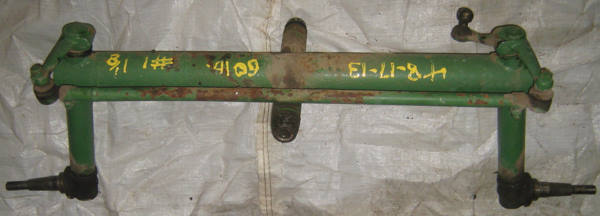

#1, from a Hercules L, Steering arms good,
no breaks or welds, bushings in knees are good, $120
#2, from a Hercules L, Steering arms good, no breaks or welds,
bushings in knees are pretty worn, $80
#6- from a Hercules L, both steering arms welded to spindles,
knee bushing fair (some free play)- $85
#9, Very good, steering arms are welded to spindles, $85
Can be shipped UPS
Complete Adjustable
Front End Assemblies

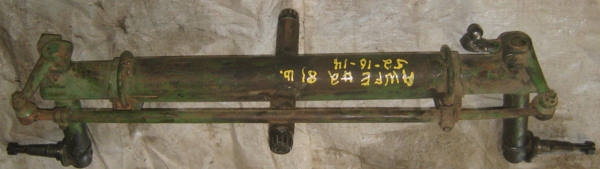

Adjustable Wide front end #3
1 1/8" spindles that had been welded to the steering arms.
Welds are ground away and arms are still firmly atached to spindles
(does not appear to be excessively worn). Steering arms not broken.
Main problem is that spindles are wobbly inside the knees-will
require new bushings. $110.00

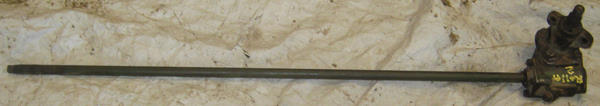

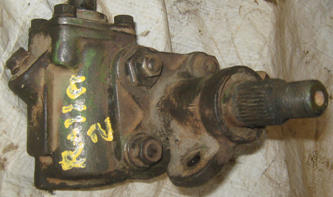

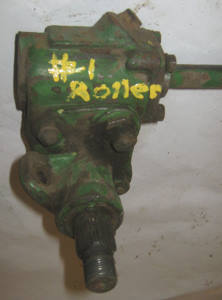

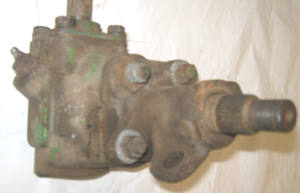

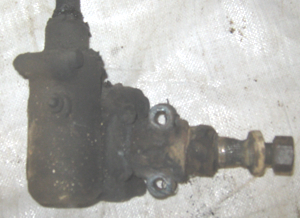

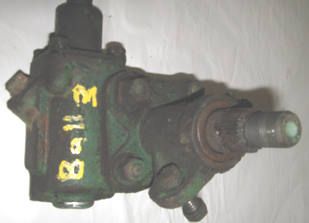

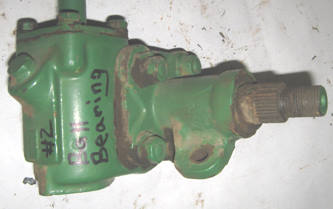

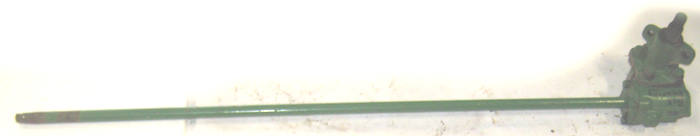

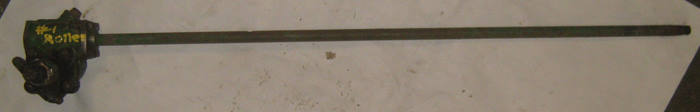

Steering Boxes, Steering
Wheels, and Steering Parts
Nut and washer for to hold steering arm to shaft, $10
Special closed nut to hold steering wheel on steering
shaft, $10

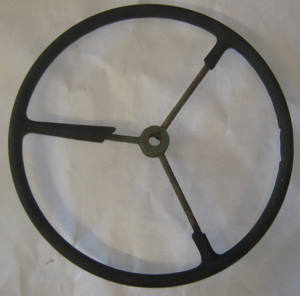

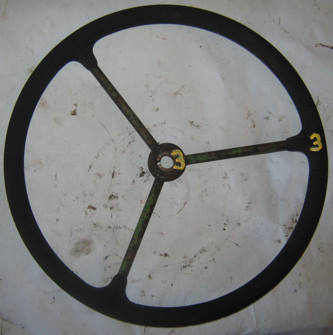

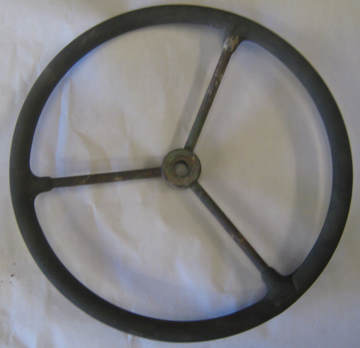

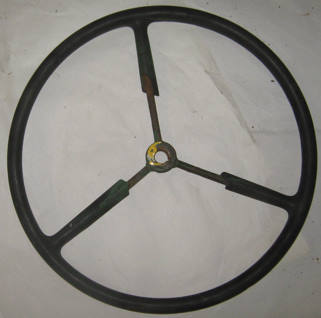

Nice steering wheels, cracks in the rubber that may
need to be refilled, $15 each

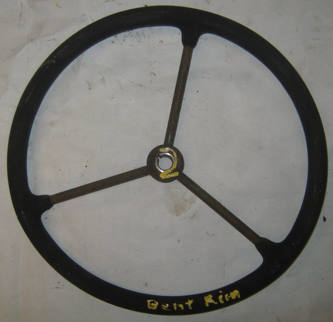

These two steering wheels have rubber chunks missing,
free with any order of other parts

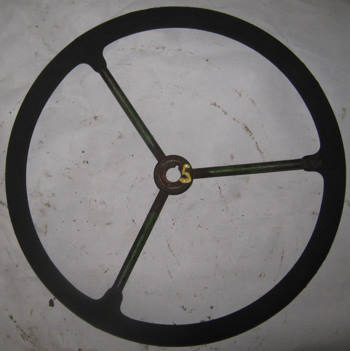

This steering wheel free with any other parts order.

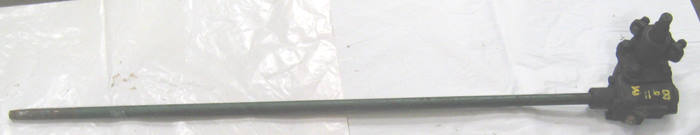

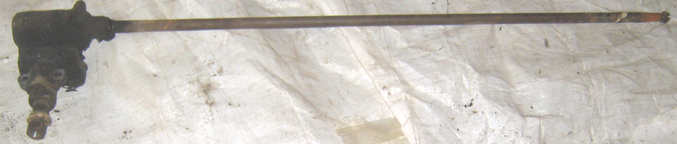

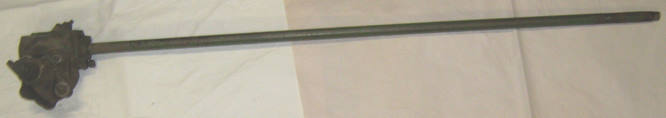

Good steering posts, $35
